Archer C54 is an AC1200 dual-band wireless router. Ultra-fast dual-band Wi-Fi – AC1200 standard provides ideal speeds for streaming 4K video and fast downloads. Enhanced Wi-Fi coverage – Four antennas and Beamforming technology ensure stable wireless connections and optimal network coverage. Three operating modes – router, access point and range extender modes provide comprehensive network support. Parental control function – allows you to manage Internet access. Guest network – provides guests with Internet access while ensuring the security of main network resources. Smooth HD transmission – IGMP Proxy/Snooping, Bridge and Tag VLAN functions contribute to optimal IPTV transmission. IPv6 support – IPv6 (Internet Protocol version 6) compliance. Small size – does not take up much space and blends perfectly into any interior.
Fast Wi-Fi network in two bands
For devices requiring higher bandwidth, the 5 GHz band is ideal, providing faster and smoother connections, while for other devices the stable 2.4 GHz band will be fully sufficient.
Wi-Fi range throughout the home
Four high-performance external antennas will deliver the Wi-Fi signal to every corner of your home. Beamforming technology detects devices and transmits a strong Wi-Fi signal to them, even if they are in a remote location or have low power.
Interference-free communication
With MU-MIMO technology, Archer C54 increases the efficiency of its connections, helping devices achieve optimal performance. Simultaneous transmission on two MU-MIMO devices can be as smooth as with one device – provided that the service provider provides sufficient bandwidth.
Three working modes:
1. Router mode (default): Connect an Ethernet cable to instantly create a private wireless network and provide access to all your Wi-Fi devices.
2. Access point mode: Transform your wired network into a wireless network.
3. Extender Mode: Extend the range of your wireless network.
Features:
– Dual Band Wi-Fi
– AC1200 Speeds
– Beamforming
– MU-MIMO
– IPv6 Support
– IPTV Support
– Easy Wi-Fi Sharing
– LED Control
– Small Size
– Parental Controls
A Small Device with Big Capabilities, Multi-tasking Management Tools
With the built-in versatile tools, including parental controls, guest network, QoS, you can easily configure your home network.
– Parental Controls: Content Blocking, Internet Access Restriction
– Guest Network: Different Password than the Main Network, Protected private network
– QoS: Prioritize devices
High level of integration for a compact size
The Archer C54 router is designed to provide the optimal performance of the shared Wi-Fi network. Advanced semiconductor technology helps integrate all the elements, including the processor, memory, and multi-stream processing unit, into a single chip to achieve versatile operation and high power in a compact package.
Stability as standard-sized devices
The Archer C54 router has undergone numerous tests based on rigorous standards to confirm that the device is reliable even in difficult conditions. A total of 8 randomly selected routers were tested, taking a total of 1936 hours.
– Continuous Transmission Test: 24 hrs (Continuous upload and download of a 10GB file.)
– Structural Strength Test: 1.5m + 120min (1.5m drop test and 120min vibration test.)
– Harsh Environment Operation Test: 48 hrs (Storage Temperature: 70 °C and -20 °C.)
– RAM Load Test: ≥ 25000 (Read & Write)
– Performance Test: 16 Devices + 7 Days (16 Wi-Fi devices connected and transmitting data for 7 days without Wi-Fi interruption.)
– Flash Memory Test: ≥ 2000 I/O (Read & Write.)
Easy-to-use management tools
It only takes a few minutes to set up your Archer C54 router using the intuitive Tether app or the management website. Tether is an application that you can quickly download to your Android or iOS phone, and with which you can easily configure all your network settings.
SPECIFICATION:
WIRELESS NETWORK:
– Standards: Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
– Wi-Fi speeds: AC1200, 5 GHz: 867 Mbps (802.11ac), 2.4 GHz: 300 Mbps (802.11n)
– Wi-Fi range: 3-room homes, 4 integrated antennas, More antennas means more range
– Beamforming: Targeting the network signal to the client allows for increased Wi-Fi range
– Wi-Fi performance: Average, Dual band, Distributes devices between available bands to ensure their optimal performance
– MU-MIMO 2×2: Allows simultaneous communication with several MU-MIMO-enabled clients
– Operating modes: Router mode, Access point mode, Repeater mode
HARDWARE FEATURES:

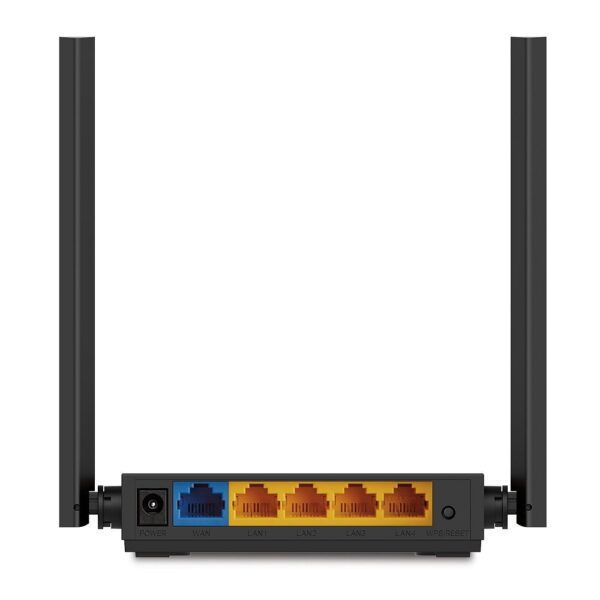

– Ethernet ports: 1 x 10/100 Mbps WAN port, 4 x 10/100 Mbps LAN ports
TRANSMISSION SECURITY:
– Wi-Fi encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
SOFTWARE:
– Network Security: SPI Firewall, Access Control, IP and MAC Binding
– Guest Network: 5GHz Guest Network, 2.4GHz Guest Network
– Parental Controls: URL Filtering, Time-based Access Restrictions
– Quality of Service: QoS Prioritization for Devices
TRANSMISSION SECURITY:
– Network Protection: SPI Firewall, Access Control, IP and MAC Binding, Application Layer Gateway
– Guest Network Feature: 5GHz Guest Network, 2.4GHz Guest Network
– Wi-Fi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
HARDWARE FEATURES:
– Processor: Single-core processor
– Ethernet ports: 1 x 10/100 Mbps WAN port, 4 x 10/100 Mbps LAN ports
– Buttons: WPS/Reset
– Power supply: 9 V ⎓ 0.85 A
SOFTWARE:
– Protocols: IPv4, IPv6
– Parental controls: URL filtering, Time-based access restrictions
– WAN types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
– Quality of Service: Device QoS priorities
– NAT forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
– IPTV: IGMP Proxy, IGMP Snooping, Bridge, VLAN tagged
– DHCP: Address Reservation, DHCP Client List, Server
– DDNS: NO-IP, DynDNS
– Management: Tether App, Management Page
OTHER:
– System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browser, Cable or DSL modem (if required), ISP agreement (for Internet access)
– Certifications: FCC, CE, RoHS
– Operating Environment: Allowable Operating Temperature: 0℃~40℃ (32℉ ~104℉), Storage Temperature: -40℃~60℃ (-40℉ ~140℉), Storage Humidity: 10%~90%, non-condensing, Storage Humidity: 5%~90%, non-condensing
TESTING DATA:
– Wi-Fi Transmission Power: CE EIRP: <20 dBm (2.4 GHz), <23 dBm (5 GHz); FCC: <30 dBm (2.4 GHz & 5 GHz)
– Wi-Fi receive sensitivity: 5 GHz: 11a 6 Mbps: -98 dBm, 11a 54 Mbps: -78 dBm, 11ac HT20 mcs8: 69 dBm, 11ac HT40 mcs9: -65 dBm, 11ac HT80 mcs9: -62 dBm; 2.4 GHz: 11g 54 Mbps: -78 dBm, 11n HT20 mcs7: -74 dBm, 11n HT40 mcs7: -71 dBm
PACKAGE APPEARANCE AND CONTENTS:
– Dimensions (W×D×H): 115 × 106.7 × 24.3 mm (4.5 × 4.2 × 1.0 in)
– Package contents: Archer C54 Wi-Fi Router, Power adapter, RJ45 Ethernet cable, Quick Installation Guide
