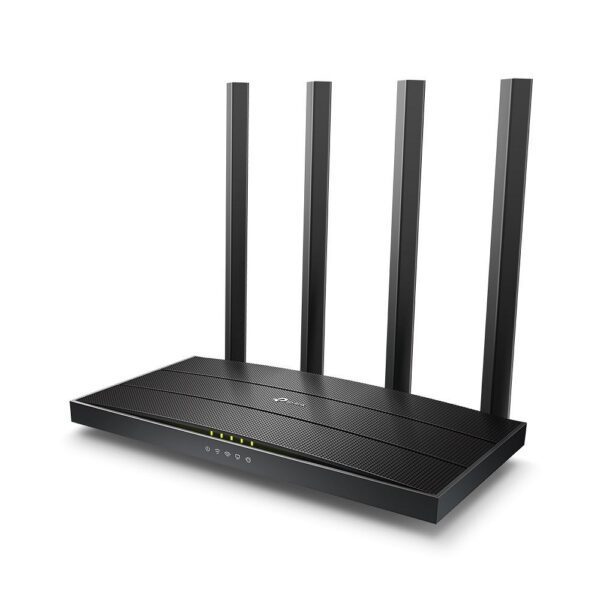

MU-MIMO AC1200 Gigabit Wireless Router. AC1200 Dual-Band WiFi – 867 Mbps in the 5 GHz band and 400 Mbps in the 2.4 GHz band. MU-MIMO – MU-MIMO technology allows you to connect to two devices at the same time, which doubles the router’s performance. Long range – The combination of four antennas and Beamforming technology allows you to create a strong and reliable wireless network. AP mode – AP mode support allows you to create a Wi-Fi access point. Easy setup – thanks to the Tether application available for iOS and Android mobile devices, network setup takes just a few minutes. EasyMesh – Flexible Mesh Networking by Combining EasyMesh-Enabled Routers.
Non-Stop Entertainment with AC1200 Dual Band
Archer C6 broadcasts two separate wireless networks on the 2.4GHz and 5GHz bands, delivering blazing-fast wireless performance. This gives you the ability to use two dedicated wireless networks simultaneously – with speeds that are suitable for even the most demanding applications. This means you can use everyday, less demanding applications, such as email or web browsing, on the 2.4GHz band, while using the 5GHz band for more demanding, lag-sensitive applications, such as HD video streaming or online gaming.
Advanced Security with WPA3
The latest Wi-Fi security protocol, WPA3, brings new possibilities for enhancing the cybersecurity of private networks. Stronger Wi-Fi password encryption and increased protection against Brute Force attacks ensure the security of your home Wi-Fi network.
Whole-home Wi-Fi coverage
Four high-performance external antennas deliver Wi-Fi signals to every corner of your home. Beamforming technology detects devices and sends them a strong Wi-Fi signal, even if they are in a remote location.
More simultaneous connections with MU-MIMO
With MU-MIMO technology, Archer C6 can send data to several devices at the same time. Unlimited entertainment without delays on all devices becomes a reality. All devices receive data faster, and the Wi-Fi network is used more efficiently.
10x faster Gigabit connections
With one Gigabit WAN port and four Gigabit LAN ports, the connection can be ten times faster than standard Ethernet connections. Connect your favorite wired devices to Archer C6 – you’ll be impressed!
Flexible Home Mesh Wi-Fi Network
If your home has dead zones, simply add more EasyMesh compatible devices to expand your home mesh Wi-Fi network. Forget about searching for a stable signal connection.
– WiFi Dead Zone Killer – Eliminates areas of weak Wi-Fi signal throughout your home.
– Smart Roaming – Uninterrupted streaming as you move around your home
– One WiFi Name – No more switching between Wi-Fi networks
Access Point Mode
Archer C6 supports AP mode. When enabled, wireless devices can easily access your wired network.
Easy Management with Tether App
Download the free Tether app to your Android or iOS device. This allows you to easily configure your router and network settings.
SPECIFICATION:
WIRELESS NETWORK:
– Standards: Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
– WiFi speeds: AC1200, 5 GHz: 867 Mbps (802.11ac), 2.4 GHz: 400 Mbps (802.11n)
– WiFi coverage: 3-room homes, 4 powerful integrated antennas providing enough power to boost the signal and cover a large area
– Beamforming: Targeting the signal to the client to increase the Wi-Fi range
– WiFi performance: Average, Dual band, dividing devices between available bands for optimal performance
– MU-MIMO: Allows you to
– Airtime Fairness: Improves network performance by reducing inefficient bandwidth usage
– Working Modes: Router Mode, Access Point Mode
TRANSMISSION SECURITY:
– Network Protection: SPI Firewall, Access Control, IP and MAC Binding, Application Layer Gateway
– Guest Network Feature: 5GHz Guest Network, 2.4GHz Guest Network
– VPN Server: Archer C6 in V4 hardware version does not have a VPN server
– WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
HARDWARE FEATURES:
– Processor: 1.2GHz processor
– Ethernet Ports: 1 Gigabit WAN Port, 4 Gigabit LAN Ports
– Buttons: WPS/Wi-Fi, Power, Reset
– Power Supply: 12V ⎓ 1A
SOFTWARE:
– Protocols: IPv4, IPv6
– OneMesh: OneMesh support to create a flexible network using TP-Link OneMesh products
– Parental Controls: URL Filtering, Time-based Access Restrictions
– WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
– Quality of Service: QoS Prioritization for Devices
– Cloud Service: OTA Software Updates, TP-Link ID, DDNS
– NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
– IPTV: IGMP Proxy, IGMP Snooping, Bridge, VLAN Tagged
– DHCP: Address Reservation, DHCP Client List, Server
– DDNS: TP-Link, NO-IP, DynDNS
– Management: Tether App, Management Page
OTHER:
– System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browser, Cable or DSL modem (if required), ISP Agreement (for Internet access)
– Certifications: FCC, CE, RoHS
– Operating Environment: Operating Temperature: 0℃~40℃ (32℉~104℉), Storage Temperature: -40℃~70℃ (-40℉~158℉), Humidity: 10%~90%, non-condensing, Storage Humidity: 5%~90%, non-condensing
TESTING DATA:
– WiFi Transmission Power: CE EIRP: <20dBm (2.4GHz), <23dBm (5GHz); FCC: <30dBm (2.4GHz & 5GHz)
– WiFi receiving sensitivity: 5GHz: 11a 6Mbps: -93dBm, 11a 54Mbps: -78dBm, 11ac HT20 mcs8: -69dBm, 11ac HT40 mcs9: -65dBm, 11ac HT80 mcs9: -62dBm; 2.4GHz: 11g 54Mbps: -78dBm, 11n HT20 mcs7: -74dBm, 11n HT40 mcs7: -71dBm
PACKAGE APPEARANCE AND CONTENTS:
– Dimensions (W×D×H): 215 × 117 × 32 mm (8.5 × 4.6 × 1.2 inches)
– Package contents: Archer C6 Wi-Fi Router, Power adapter, RJ45 Ethernet cable, Quick Installation Guide
