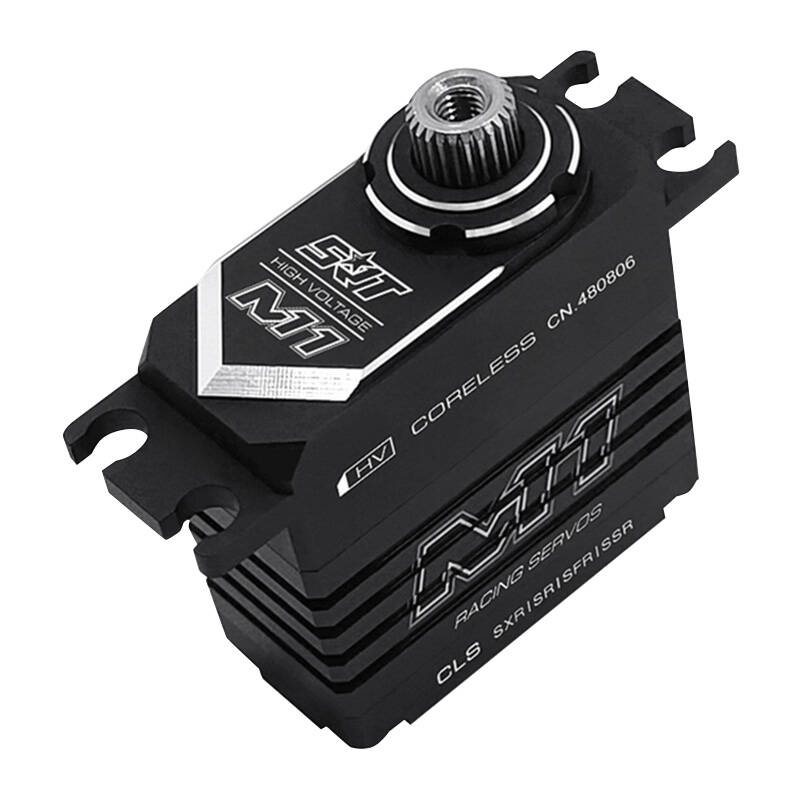

M11 HiVOLT CORELESS Digital servo (9kg-0,055s/60°) Servo
The Coreless Servo M11 HiVOLT in 1/12 scale is perfect for various RC vehicle models. It supports multiple operating modes, including high-speed modes such as SXR, SFR, SR, and SSR, making it suitable for a wide range of applications. It stands out with impressive performance and low energy consumption. Furthermore, it features a small dead zone of only about 2 μs, which means it responds rapidly to control signal changes, ensuring precise motion control.
| Model | SRT-M11 |
|---|---|
| Type | Digital |
| Bearings | Double |
| Motor Type | Coreless |
| Gear Type | Metal |
| Gear Material | Titanium and Steel |
| Control System | Pulse Width Control |
| Operating Frequency | 1520 μs / 330 Hz |
| Operating Voltage | DC 6.0-8.4 V |
| Operating Speed (6.0 V) | 0.07 s/60 degrees unloaded |
| Operating Speed (7.4 V) | 0.065 s/60 degrees unloaded |
| Operating Speed (8.4 V) | 0.055 s/60 degrees unloaded |
| Stall Torque (6.0 V) | 7.0 kg.cm |
| Stall Torque (7.4 V) | 8.0 kg.cm |
| Stall Torque (8.4 V) | 9.0 kg.cm |
| Potentiometer Drive | Direct |
| Dimensions | 28.5 x 13.4 x 29 mm |
| Weight | 28 g |
| Connector Cable Length | 170 mm (JR-type connector) |
