● 120 watts PoE power supply
● 4 Gigabit PoE+ ports and 1 Gigabit Ethernet ports+1Gigabit SFP
● Extend mode support remote PoE feeding up to 250m
● VLAN mode isolate each PoE Ports for security
● IEEE 802.3at / IEEE 802.3af standard compliant
● Plug&play, simple setup with no configuration needed

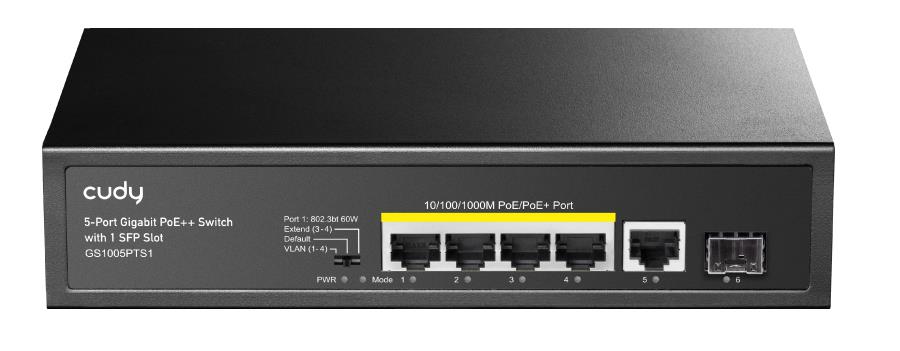

ModelGS1005PTS1Ethernet
4*10/100/1000M PoE Port
1*1000M RJ45 Port
1* Gigabit SFP Uplink Port
Switching Capacity12GbpsThroughput8.928MppsPacket Buffer1MbMAC Address2KJumbo Frame9216bytesTransfer ModeStore and forwardMTBF100000 hourNetwork protocol
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab(1000Base-TX)
IEEE802.3z(1000Base-FX)
IEEE802.3x (Flow control)
PoE Protocol
IEEE802.3af （15.4W）
IEEE802.3at （30W）
IEEE802.3at （4 Pair 60W）
Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT),EN61000-4-5 (Surge)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Network Medium
10Base-T : Cat3、4、5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
Optical Media
Multimode fiber : 50/125, 62.5/125, 100/140μm
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Working Environment
Working Temperature：-20~50°C
Storage Temperature：-40~85°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
Working Height：Maximum10,000 feet
Storage heigh：Maximum 10,000 feet
PWR（power supply）
Lighting：Powered
Un-Light：No Power
Mode（DIP）
Lighting：VLAN
Un-Light：Default
Flashing：Extend
1-6 Gree（Link&Data）
Lighting：Connecting
Flashing：Data Transmit
Un-Light：Disconnect
DIP Switch
VLAN：Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters
Extend：Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Product Dimension200*118*44mmPackage Dimension245*190*60mmN.W0.6kgG.W0.9kgPacking Info
Carton MEAS：505*320*402mm
Packing Qty：20units
Packing Weight：19KG
Package List
Input Voltage ：AC 100-240 V
Package ListSwitch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
